VAE-430
The VAE-430 is a three-phase protection relay test system providing 3×0–40 A AC current, 4×0–120 V AC voltage…
- Current output 3×0–40 A AC
- Single-phase current 1×0–120 A
- Voltage output 4×0–120 V AC / 1×0–240 V
Six current + six voltage channels with 1000 VA single-phase power for differential, distance and high-burden relay testing.
US$5,000/ set
Prepare the test before you leave the office. These browser-based calculators match this instrument and need no account.
| Specification | Value | Unit |
|---|---|---|
| Current Generator | ||
| Six-phase AC (L-N) setting range | 6 × 0 – 30 | A |
| Three-phase AC (parallel) setting range | 3 × 0 – 60 | A |
| Single-phase AC (parallel) setting range | 1 × 0 – 180 | A |
| DC setting range | 6 × 0 – ±10 | A |
| Power – 6-phase AC | 6 × 300 VA at 30 | A |
| Power – 3-phase AC | 3 × 450 VA at 60 | A |
| Power – 1-phase AC | 1 × 1000 VA at 180 | A |
| Power – DC | 6 × 70 VA at 10 | A |
| Accuracy | AC ≤ 0.1 % · DC ≤ 0.5 % | |
| Resolution | 1 | mA |
| Voltage Generator | ||
| Six-phase AC (L-N) setting range | 6 × 0 – 120 | V |
| Three-phase AC (L-L) setting range | 3 × 0 – 240 | V |
| DC setting range | 6 × 0 – ±160 | V |
| Power – 6-phase AC | 6 × 80 VA at 120 | V |
| Power – 3-phase AC | 3 × 100 VA at 240 | V |
| Power – DC | 6 × 70 VA at 160 | V |
| Accuracy | AC ≤ 0.1 % · DC ≤ 0.5 % | |
| Resolution | 1 | mV |
| Auxiliary DC Supply | ||
| Voltage range | 110 / 220 | V |
| Max. current | 1.5 | A |
| Power | max. 165 / 330 | VA |
| Binary Inputs | ||
| Number | 8 | |
| Input characteristics | Idle contact or potential-free contact | |
| Threshold characteristics | “0”: 0–6 V · “1”: 12–250 V | |
| Max. measuring time | 999999.999 | s |
| Time accuracy | ±1 | ms |
| Time resolution | 1 | ms |
| Binary Outputs | ||
| Number | 8 | |
| Type | Idle contact | |
| Break capacity | 250 V AC / 0.5 A · 250 V DC / 0.2 A | |
| General | ||
| Frequency range | 0 – 1000 | Hz |
| Frequency accuracy | < 1 mHz (0–65 Hz) · < 10 mHz (65–450 Hz) · < 20 mHz (450–1000 Hz) | |
| Frequency resolution | 0.01 | Hz |
| Phase range / accuracy / resolution | −360° … +360° · 0.1° · 0.1° | |
| Harmonic superposition | 2 – 20 | |
| Harmonic distortion | ≤ 0.5 % | |
| Power Supply & Environment | ||
| Nominal input voltage | AC 230 V / 120 V ±10 % (customized), 1-phase | |
| Nominal frequency | 50 / 60 | Hz |
| Rated current | 10 A at 230 V · 12 A at 120 V | |
| Connection | Standard AC socket (IEC 60320) | |
| Operating temperature | 0 … +50 | °C |
| Storage temperature | −25 … +70 | °C |
| Humidity | 5 … 95 % RH, non-condensing | |
| Vibration | IEC 60068-2-6 (20 m/s² at 10–150 Hz) | |
| Mechanical | ||
| Net weight | 18.5 | kg |
| Gross weight | 25 | kg |
| Dimensions (W×H×D, without handle) | 180 × 340 × 340 | mm |
| Packing dimensions (W×H×D) | 470 × 550 × 280 | mm |
| Connection ports | 2 USB · 1 serial | |
6×0–30 A with 300 VA per phase — enough for three-phase differential testing with all currents and voltages synchronized.
3×0–60 A or 1×0–180 A at 1000 VA for high-burden and high-current relay applications.
6×0–120 V AC (L-N) and 3×0–240 V (L-L) connection for complete three-phase voltage output.
6×0–±10 A DC current and 6×0–±160 V DC voltage extend coverage to DC trip and monitoring circuits.
AC ≤0.1% / DC ≤0.5% accuracy with 1 mA and 1 mV resolution.
0.1° accuracy and resolution for precise phase-angle testing.
0–1000 Hz with <1 mHz accuracy below 65 Hz for frequency relays and synchronization tests.
Stand-alone test execution on the integrated PC, with 8 binary inputs and 8 binary outputs for full scheme logic.
Six-phase synchronized injection for multi-winding differential protection testing.
Multi-ended differential and high-impedance busbar schemes.
Distance protection, power swing and auto-reclosing scheme tests.
High-power output for electromechanical relays with heavy burdens.
Advanced protection test laboratories and relay training centers.
The same relay test set is used differently in each industry. These pages map the protection scheme to the injection, pass criterion and model selection.
ATS/STS transfer, generator protection and main-tie-main schemes.
Motor feeders, incoming supply and process transformers.
Interconnection, anti-islanding and collector feeder protection.
Protection panel FAT, trip circuits and interlocking.
Six-phase current outputs are required for transformer/generator/busbar differential testing where three-phase current injection into two sets of windings (or two ends) must be synchronized, and for applications needing simultaneous three-phase current and three-phase voltage. For most single-ended overcurrent/distance schemes a three-phase set (VAE-430) is sufficient.
Yes. The three-phase channels can be paralleled to deliver 3 × 0–60 A, and all channels paralleled to deliver 1 × 0–180 A at up to 1000 VA for high-current applications.

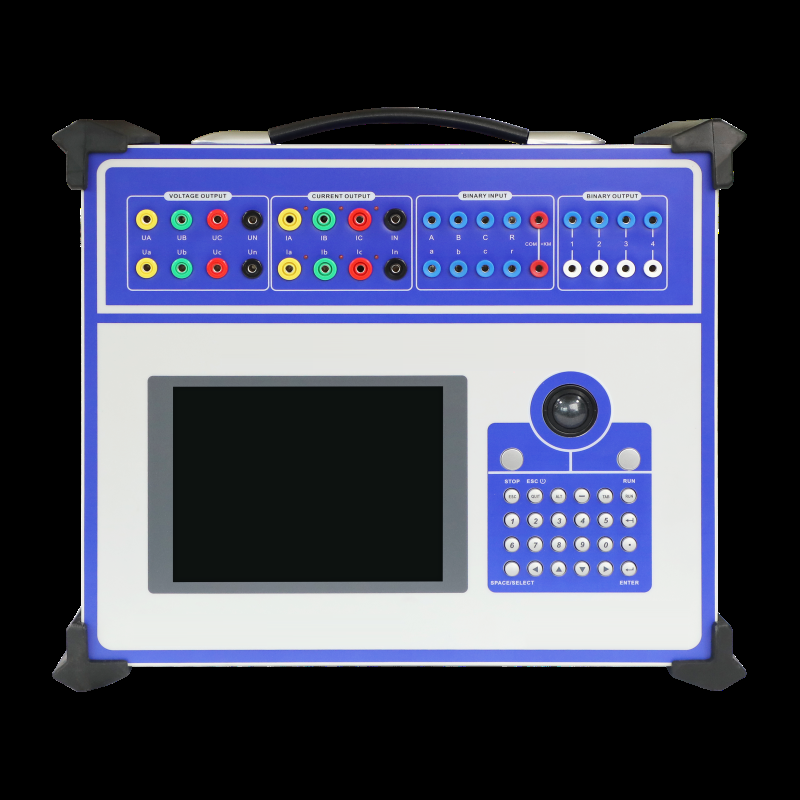

Yes. The VAE-660 integrates an embedded industrial PC with an LCD, so tests can be executed stand-alone. USB and serial interfaces are available for PC-based automation and results transfer.
