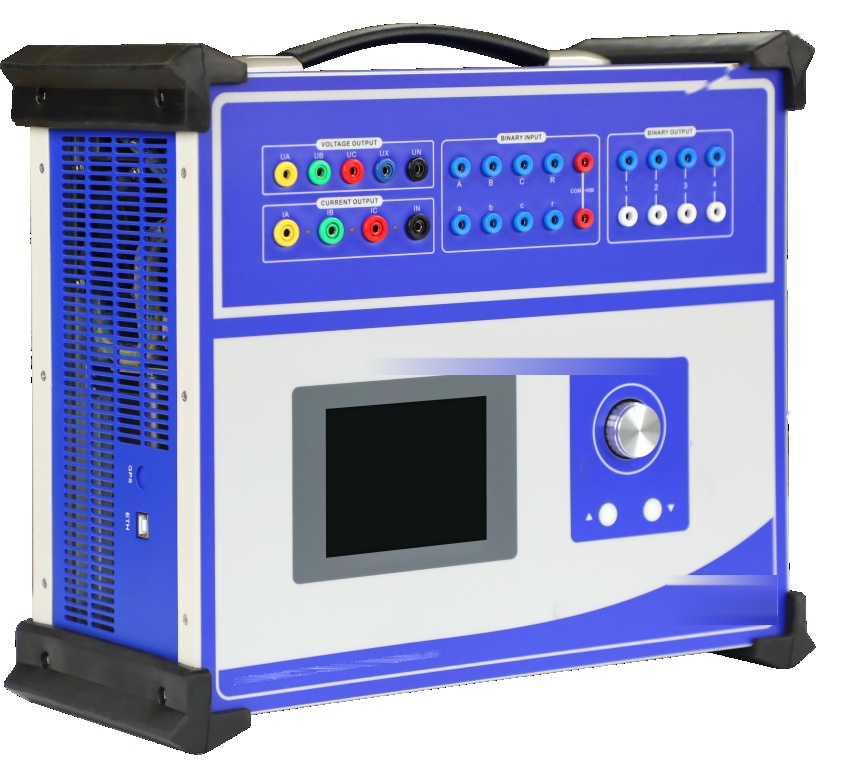

VAE-430 Three-Phase Protection Relay Test System

Three-phase current + four-channel voltage relay test set with high per-phase power for electromechanical, static and numerical relays.

US$2,000/ set

Current output 3×0–40 A AC
Single-phase current 1×0–120 A
Voltage output 4×0–120 V AC / 1×0–240 V
Accuracy AC ≤0.1% · DC ≤0.5%
Binary I/O 8 inputs / 4 outputs
Weight 18

Overview

VAE-430 · pricing
US$2,000 / unit

Three-phase protection relay test set, supplied with the complete PC test software. The price includes hardware and software logo customisation and the multi-language user interface.

  • Logo on enclosure and on screen
  • 9-language UI layer
  • Relay test software included
  • Quotation & lead time on request
Request a quote →
Software walkthrough

Relay protection test software, screen by screen

The VAE-430 runs one PC application for the whole test programme: manual three-phase sources, IEC 60255 characteristic tests, distance and differential protection, system-level group tests and COMTRADE fault replay. Pick a module below to see what the operator actually works with.

VAE-430 relay protection test software launcher
Launcher. Test modules are grouped by what they test, not by menu depth — AC/DC sources, inverse-time characteristics, distance and differential protection, and system-level group tests. Recent runs and instrument connection status stay visible, so the next test is one click away.
VAE-430 test software launcher in English
English interface
VAE-430 继电保护测试软件启动页(中文界面)
中文界面 · Chinese interface

Interface preview. Screens are shown with sample data and illustrate the planned layout and workflow — they are not live measurements, and module set and layout may change before release.

What the software does

Manual three-phase AC and DC sources

Three current and voltage channels with independent amplitude and angle, DC output, and live measurement of the injected quantities — the base instrument for secondary injection testing.

Inverse-time overcurrent curves

IEC 60255-151 and IEEE C37.112 inverse-time characteristics, with the operating time measured against the setpoint rather than read off a table.

Distance and differential protection

Mho and quadrilateral distance zones on the R-X plane, zero-sequence compensation, and bias/operate differential characteristics with harmonic restraint.

State sequence and group tests

Multi-state fault sequences and complete group tests — fault, trip, dead time, reclose, permanent trip — driven through the binary inputs and outputs.

COMTRADE fault replay

Replay recorded disturbances through the current and voltage channels to reproduce a field fault in the workshop.

Multi-language, white-label

The UI layer runs across nine locales and the build is rebrandable — your logo on the enclosure and your logo inside the software.

Free calculators for this instrument

Prepare the test before you leave the office. These browser-based calculators match this instrument and need no account.

Technical Specifications

Specification Value Unit
Current Generator
Three-phase AC (L-N) setting range 3 × 0 – 40 A
Single-phase AC (parallel) setting range 1 × 0 – 120 A
DC (L-N) setting range 3 × ±10 A
Power – 3-phase AC 3 × 420 VA at 40 A
Power – 1-phase AC 1 × 900 VA at 120 A
Power – DC 3 × 120 VA at 10 A
Accuracy AC ≤ 0.1 % · DC ≤ 0.5 %
Voltage Generator
Four-phase AC (L-N) setting range 4 × 0 – 120 V
Single-phase AC (L-L) setting range 1 × 0 – 240 V
DC (L-N) setting range 3 × ±160 V
Power – 4-phase AC 4 × 80 VA at 120 V
Power – 1-phase AC 1 × 100 VA at 240 V
Power – DC 3 × 70 VA at 160 V
Accuracy AC ≤ 0.1 % · DC ≤ 0.5 %
Auxiliary DC Supply
Voltage range 110 / 220 V
Max. current 1.5 A
Power max. 165 / 330 VA
Binary Inputs
Number 8
Input characteristics Idle contact or potential-free contact
Threshold characteristics “0”: 0–6 V · “1”: 11–250 V
Max. measuring time 0.1 ms – 9999 s
Time accuracy 0.1 ms
Binary Outputs
Number 4
Type Idle contact
Break capacity 220 V AC / 0.5 A · 220 V DC / 0.2 A
General
Frequency range 0–1000 (PC mode) · 20–300 (local mode) Hz
Frequency accuracy < 10 mHz (0–450 Hz) · < 20 mHz (450–1000 Hz)
Frequency resolution 0.01 Hz
Phase range / accuracy / resolution 0–360° · 0.2° · 0.1°
Harmonic superposition 1–20 (PC mode) · 1–6 (local mode)
Harmonic distortion ≤ 0.5 %
Power Supply & Environment
Nominal input voltage AC 230 V / 120 V ±10 % (customized), 1-phase
Nominal frequency 50 / 60 Hz
Rated current 10 A at 230 V · 12 A at 115 V
Connection Standard AC socket (IEC 60320)
Operating temperature 0 … +50 °C
Storage temperature −25 … +70 °C
Humidity 5 … 95 % RH, non-condensing
Vibration IEC 60068-2-6 (20 m/s² at 10–150 Hz)
Mechanical
Weight 18 kg
Dimensions (W×H×D, without handle) 400 × 300 × 180 mm
Connection port For PC connection

Key Features

Three-phase current + high single-phase output

3×0–40 A with 420 VA per phase, and up to 1×120 A / 900 VA in parallel — enough to test high-burden electromechanical relays.

Four voltage channels with 240 V series mode

4×0–120 V AC per channel plus 0–240 V AC connection for line-to-line relay testing.

AC & DC injection in one unit

DC current (3×±10 A) and DC voltage (3×±160 V) extend coverage to DC relays and trip circuits.

≤0.1% AC measurement accuracy

High accuracy and versatility for testing static and numerical relays of all types and for measuring-CT injection.

Stand-alone operation with built-in OS & LCD

Run tests locally without a PC; serial port available for PC-based automated test plans.

8 binary inputs / 4 binary outputs

Wide-threshold inputs (11–250 V) and idle-contact outputs for trip contact and logic testing.

Frequency, phase and harmonic superposition

0–1000 Hz frequency range (PC mode), 0–360° phase and 1–20th harmonic superposition for comprehensive scheme testing.

Compact transportable enclosure

400×300×180 mm, 18 kg with handle — designed for substation and workshop mobility.

Applications

Substation commissioning

Acceptance and functional testing of protection relays and schemes during commissioning.

Routine maintenance

Periodic verification of relay settings and trip characteristics in service.

High-burden relay testing

Powerful sources for testing electromechanical relays with high burdens.

Measuring CT verification

High-accuracy injection current for measurement CT testing.

Training & labs

Relay test training centers, protection workshops and panel builders.

Product Video

Frequently Asked Questions

Can the VAE-430 test numerical and IEC 61850 relays?

The VAE-430 is a conventional analog-injection relay test set — it tests relays through their analog current/voltage inputs. IEC 61850 process-bus (SV/GOOSE) testing requires a dedicated IEC 61850 test set; for conventional numerical relays the VAE-430 is fully suitable.

What is the difference between three-phase and six-phase relay test sets?

A three-phase set (VAE-430) injects three currents and is ideal for most overcurrent, distance, frequency and transformer differential applications. Six-phase sets (e.g. VAE-660) add extra channels for generator/motor differential or line-differential schemes needing six currents or simultaneous current+voltage per phase.

Does it work without a PC?

Yes — the VAE-430 has a built-in operating system with LCD and local control, so standard tests can be run stand-alone. A serial port is provided for PC-based test automation.
